biogas engine

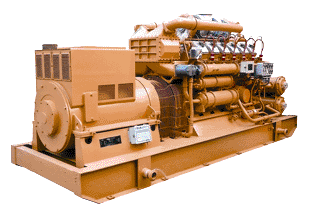

Biogas Generator

Description of Biogas Generator:
Engine model: 4190ZL, 12V190ZLDZ-2, 12V190Z-2, 12V190ZLZ
Rated power: 150 kW, 450 kW, 400 kW, 600 kW
Rated voltage: 400V
Rated current: 270A, 819 A, 728 A, 1082 A
Overhaul time: ≥18000h

Technical Parameters of Biogas Engine:
Model 4190ZL 12V190ZLDZ-2
12V190Z-2
12V190ZLZ
Code 114LZ 1012CZ 1112CZ 1812Z
Type 4 stroke, sparkle ignition, water-cooled and non-turbocharged 4 stroke, spark ignition, water-cooled, turbocharged, inter cooling, pre-combustion chamber 4 stroke, spark ignition, water-cooled and non-turbocharged, pre-combustion chamber 4 stroke, spark ignition, water-cooled, turbocharged, inter cooling
Mixing type External-mixed Mechanical inter-mixed
Arrangement of cylinders In-line V shape, 60° angle
Number of cylinders 4 12
Diameter of cylinders 190 mm
Stroke 210 mm
Rated rev 1500 r/min 1000 r/min 1500 r/min
Idle speed 700 r/min
Rated power 190 kW 500 kW 450 kW 660 kW
Exhaust temperature ≤650℃(before entering turbine)
Heat consumption ≤11340 kJ/kw·h
Oil consumption ≤1.6g/kw.h
Start mode Pneumatic/electric starting  24DC starting
Overhaul time ≥18000h


Technical Specs and Performances of Biogas Generating Set:
Generating set model 150GF-NK 450GF1-NK 400GF1-NK 600GF-NK
Engine model 4190Z1 12V190ZLDZ-2 12V190Z-2 12V190ZLZ
Excitation Brushless phase compound excitation(three-phase four-wire)automatic voltage regulation, F class insulation
Rated power 150 kW 450 kW 400 kW 600 kW
Rated voltage 400V
Rated rev 1500 r/min 1000 r/min 1500 r/min
Rated current 270A 819 A 728 A 1082 A
Power factor 0.8(lagging)
Starting mode 24DC starting
Cooling water system Open type with heat exchanger
Overhaul time ≥18000h
